Free shipping!!! EPA/EURO 5 Chinese mini excavator 2ton 1ton 1.7 ton excavator cabin mini digger
Jianggong Mini Excavator
· Beautiful appearance,high configuration,superior performance,low fuel consumption,wide operating
range.
· Multipurpose: losingsoil of vegetable greenhouse,campus greening of municipal departments,digging
the hole for tree planting of Fruit-land Nurseries concrete pavement crushing,sand-gravel material mixing,
construction work in the narrow place etc...
· It can reduce maintenance and operating costs liberate the workforce. Improve the mechanization, Iow
investment,high return.
| PARAMETERS |
| Model | SDJG-25 |
| Operating Weight | 2500kg |
| Digging bucket capacity | 0.09m³ |
| Bucket width | 500mm |
| Engine | Changchai |
| Rated power | 20kw |
| Travel speed | 4km/h |
| MAIN DEMENSIONS |
| Overall dimension( LxWxH) | 3100*1050*2540mm |
| Total length of track | 2000mm |
| Turning speed | 9rpm |
| Chassis width | 1050mm |
| Track width | 230 mm |
| OPERATING RANGE |
| Max. Digging depth | 2200 mm |
| Max. Digging height | 3100 mm |
| Max. Digging radius on ground | 2800 mm |
| Min. Rotation radius | 1550 mm |
Engine:
optional
Changchai 390 20kw
Laidong 3TE25 18.4kw
Perkins 403J-11 18.4kw
More models
Standard crushing pipe, can be equipped with a variety
of crushing hammer, soil reducer, wood grabber, auger
and other different accessories, a multi-purpose machine;
Iron crawler and rubber crawler can be interchangeable at
any time, to adapt to various conditions of construction,
the use of deflection arm, can be easily deflected work wall
foot.
Can provide a variety of accessories, can adapt to the needs
of different countries and customers
Products are widely used in indoor demolition, orchard
planting, municipal engineering, greenhouses, heaven
and earth reclamation, nursery trench fertilization,
pipeline, basement renovation, underground operations,
etc
Product Tags:
|
|

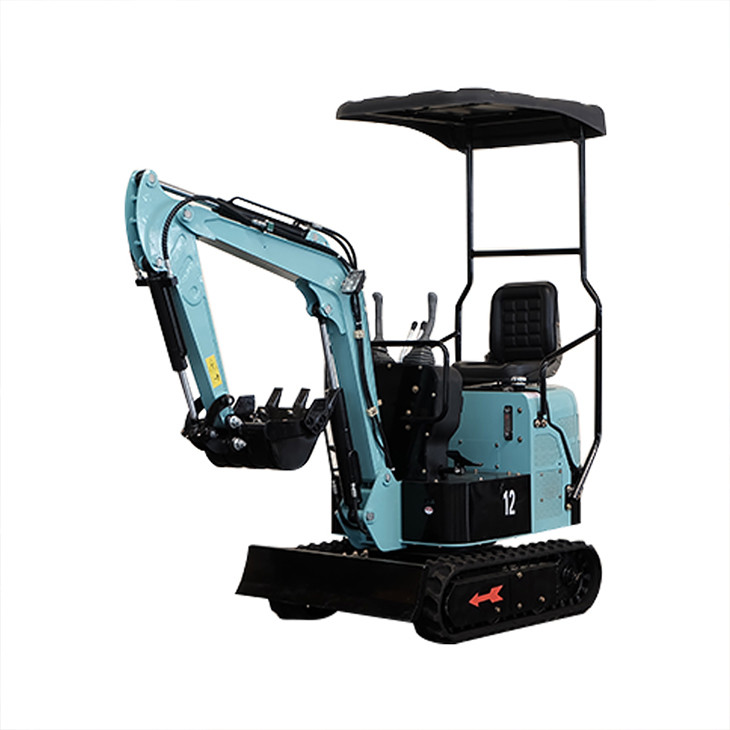

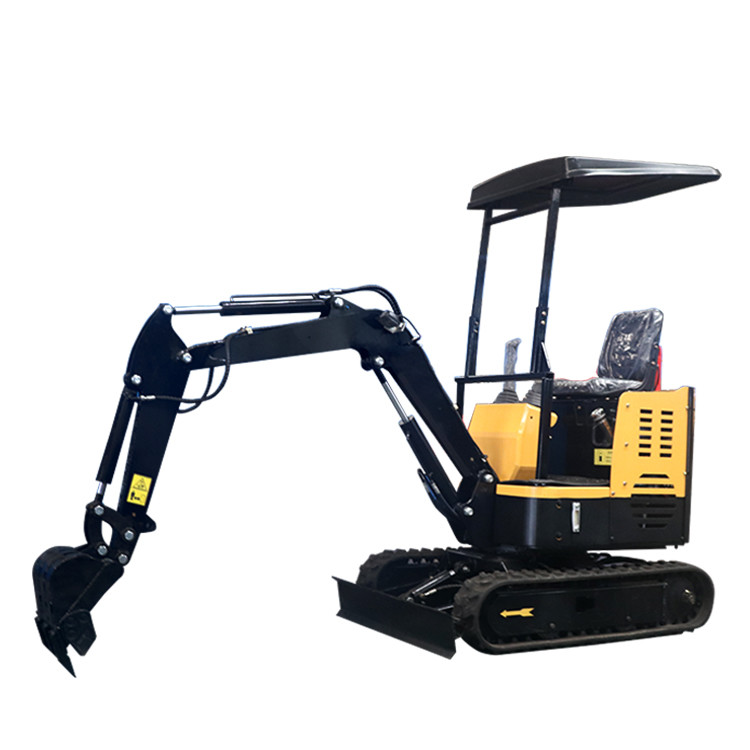

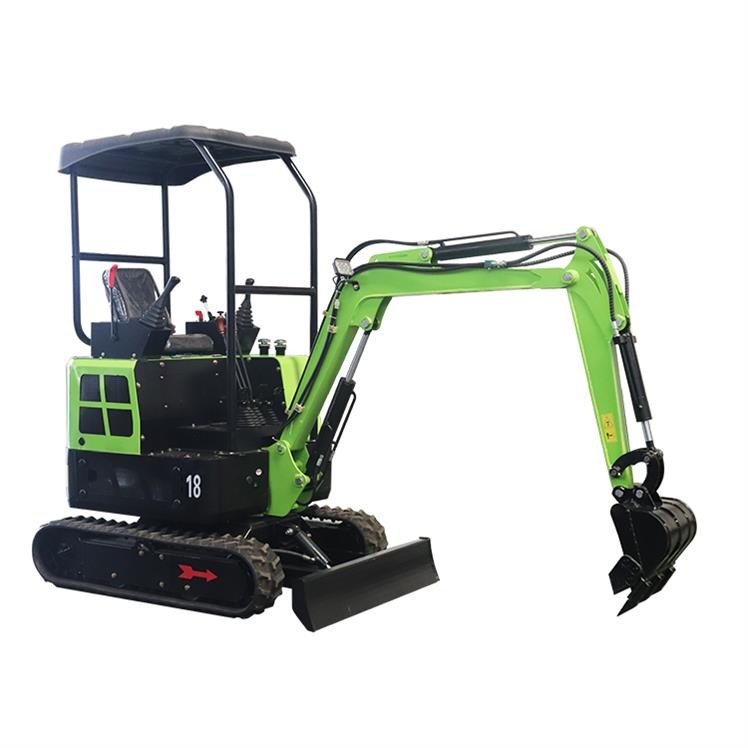

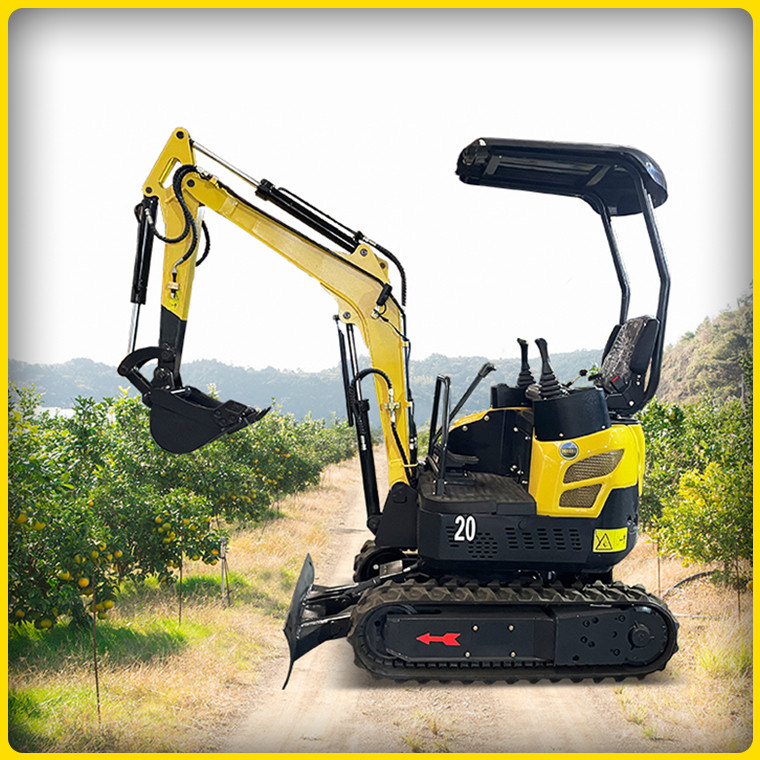

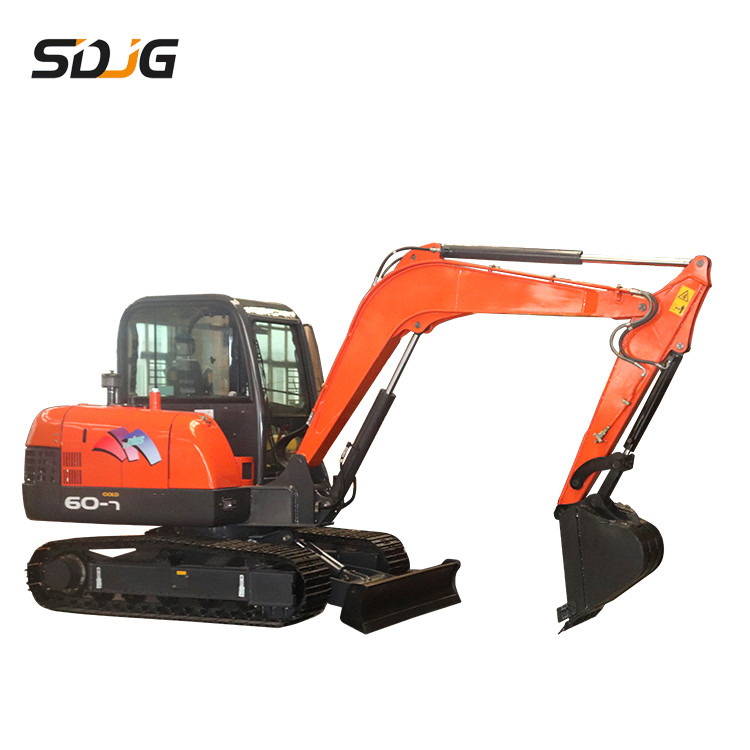

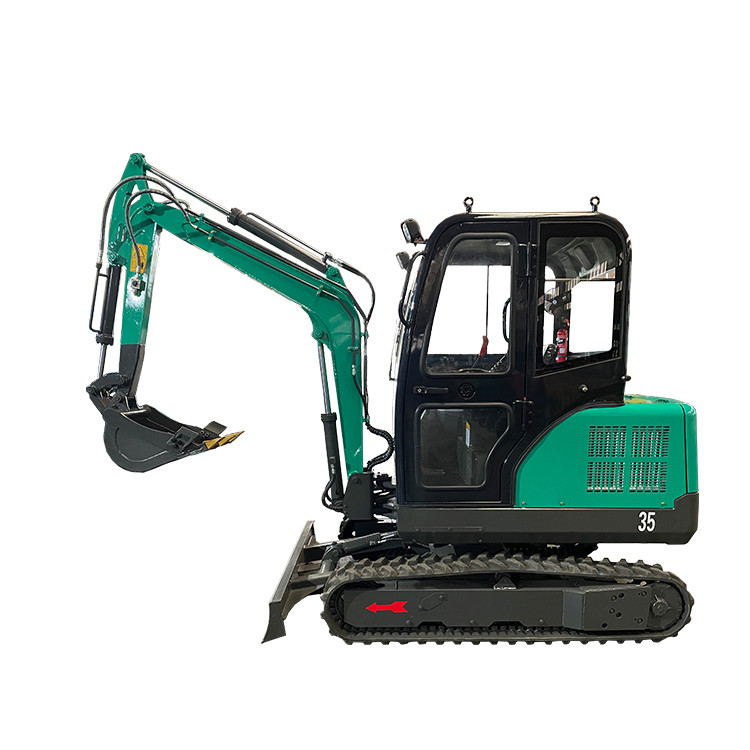

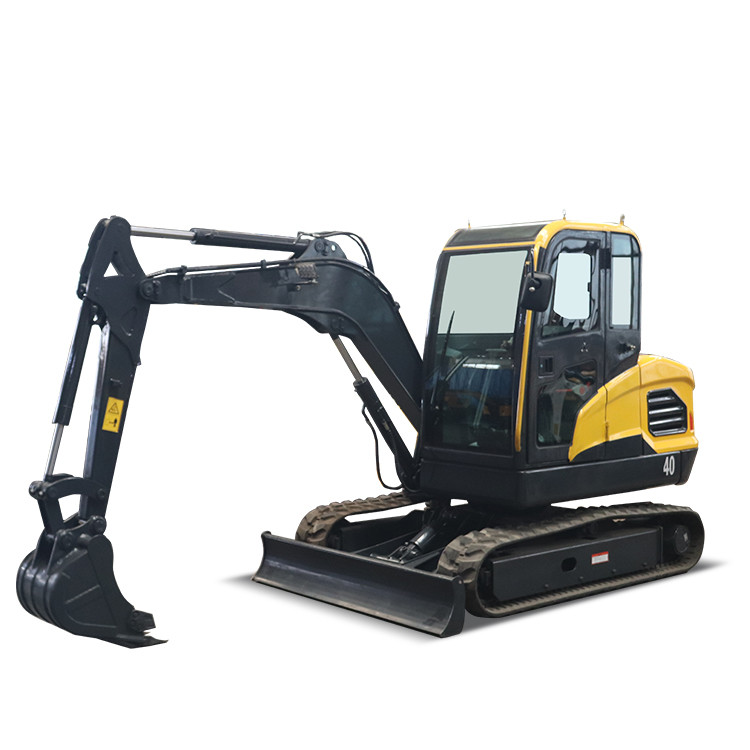

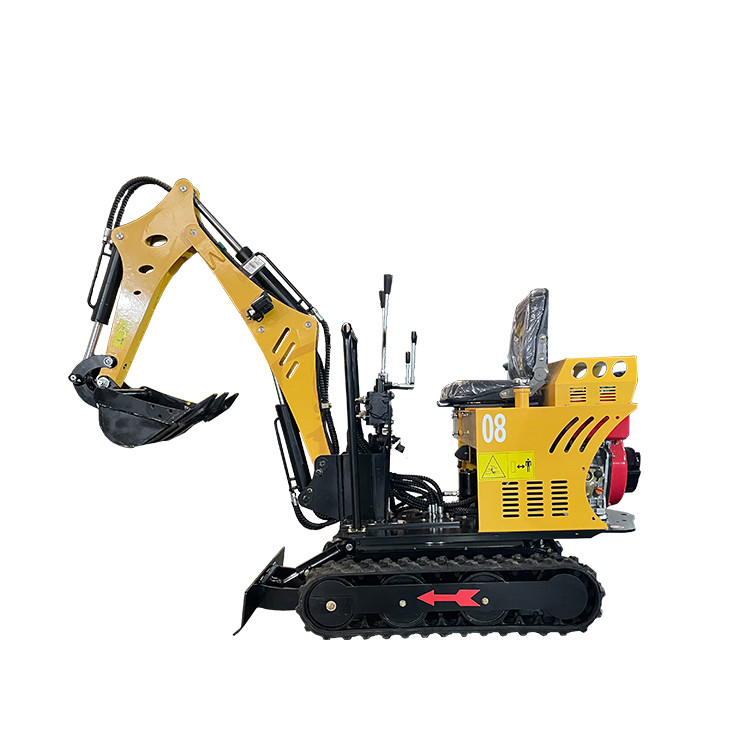

Epa / Euro 5 Mini Excavator Machine 2 Ton 1 Ton 1.7 Ton Images
|
